In the process of development, our company continuously learns advanced technology experience at home and abroad, which has continuously improved our development capabilities in the field of Semi trailer outboard brake drum axle. We will be committed to providing customers with the best service through new media platforms such as the global Internet and wireless networks, with unique and creative planning, precise communication channels and efficient marketing execution. We attach great importance to moral character, and always adhere to the management philosophy and management methods of employing people and prospering enterprises with morality. All along, we have always adhered to the spirit of abiding by the righteousness and continuous innovation.
| Axle-Outboard Drum Series Specifications | ||||||||||||

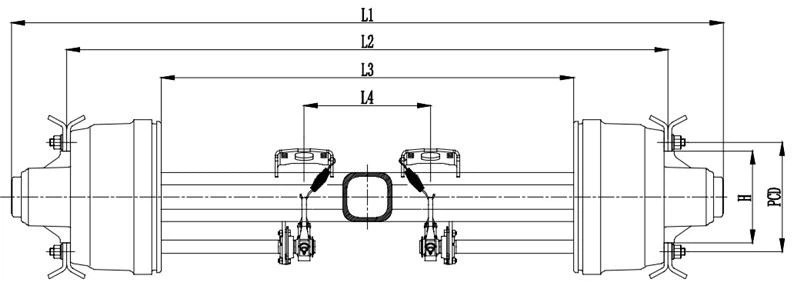

| Axle Type | Max Capacity(t) | Track(mm)L2 | Brake(mm) | Spring Seat Installation | Axle Beam(mm) | Centre Distance Of Brake Chamber(mm) | Wheel Fixing | Total Length(mm)L1 | Recommended Wheel | Axle Wright(kg) | ||
| Stud | P.C.D(mm) | H(mm) | ||||||||||
| JS13Y9C20 | 13 | 1840 | 420*180 | ≥970 | 127 | 392 | 10*M22*1.5 ISO | 285.75 | 219.8 | ~2180 | 7.5V-20 | 345 |
| JS13Y9C21 | 13 | 1840 | 420*180 | ≥970 | 127 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 363 |
| JS13Y9C22 | 13 | 1840 | 420*220 | ≥970 | 127 | 372 | 10*M22*1.5 ISO | 285.75 | 219.8 | ~2180 | 7.5V-20 | 348 |
| JS13Y9C23 | 13 | 1840 | 420*220 | ≥970 | 127 | 372 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 360 |
| JS13N4C20 | 13 | 1840 | 420*180 | ≥970 | 152.4 | 392 | 10*M22*1.5 ISO | 285.75 | 219.8 | ~2180 | 7.5V-20 | 339 |
| JS13N4C21 | 13 | 1840 | 420*180 | ≥970 | 152.4 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 357 |
| JS13N4C22 | 13 | 1840 | 420*220 | ≥970 | 152.4 | 372 | 10*M24*1.5 ISO | 285.75 | 219.8 | ~2180 | 7.5V-20 | 342 |
| JS13N4C23 | 13 | 1840 | 420*220 | ≥970 | 152.4 | 372 | 10*M24*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 354 |
